Size3.46 inch
-
Resolution340(RGB)X800
-
Outline Size37.27X89X1.6 mm
-
InterfaceMIPI
-
Working Temperature-20°C-60°C
-
Strorage Temperature-30°C-70°C
-
Brightness350cd/m2

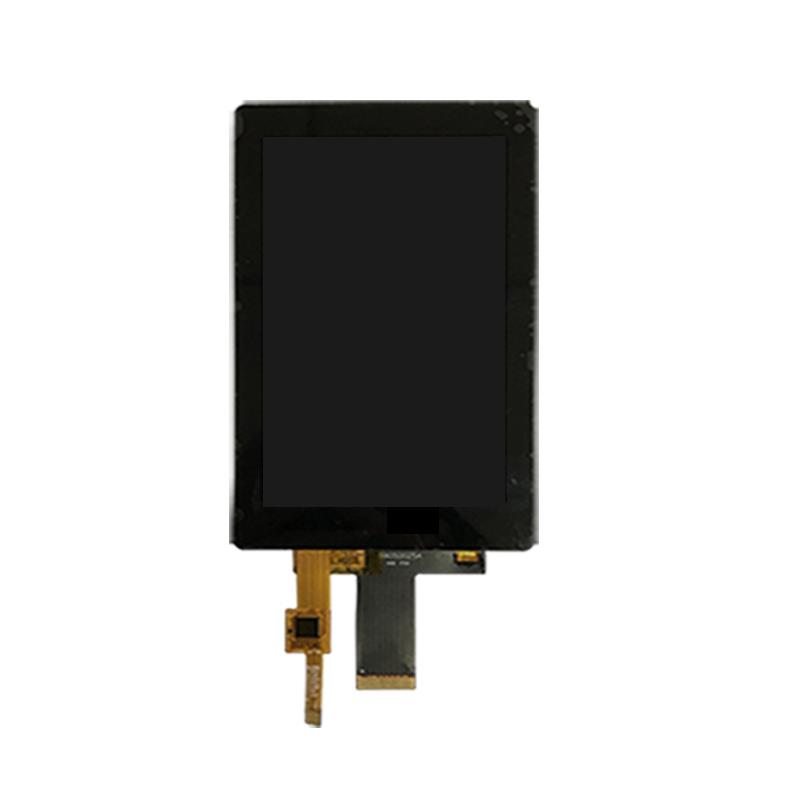

3.46 inch TFT LCD IPS Screen with Resolution 340*800 MIPI Interface
1 General Description
This display module is a transmissive type color active matrix TFT(Thin Film Transistor)
liquid crystal display (LCD) that uses amorphous silicon TFT as a switching device. This module is
composed of a TFT LCD module, a driver circuit, and a back-light unit.The resolution of a 3.46”
contains 340(RGB)X800 dots and can display up to 16.7M colors.
2 Module Parameter
Display Size(Diagonal) :3.46 inch
LCD type :α-Si TFT
Display Mode :IPS / Transmissive / Normally Black
Resolution :340RGB x 800
View Direction :All
Module Outline :37.27(H) ×89(V)×1.6 (T) (Note 1 ) mm
TP Outline(assembly) :N/A
TP Viewing Area :N/A
TP Active Area :N/A
Active Area :33.97 (H)×81(V) mm
Viewing Area :N/A
Display Colors :16.7M
Interface :mipi
Driver IC :ST7701S
Operating Temperature :-20～60 ºC
Storage Temperature :-30～70 ºC
3.Mechanical Drawing
