넳 넲
  • Resolution
    480(RGB)X800
  • Active Area
    56.16X93.60mm
  • Outline Size
    62.50 x 105.55 x 2.5 mm
  • Interface
    MIPI
  • Size
    4.3 inch
  • Working Temperature
    -20°C-70°C
  • Strorage Temperature
    -30°C-80°C
  • Brightness
    450cd/m2

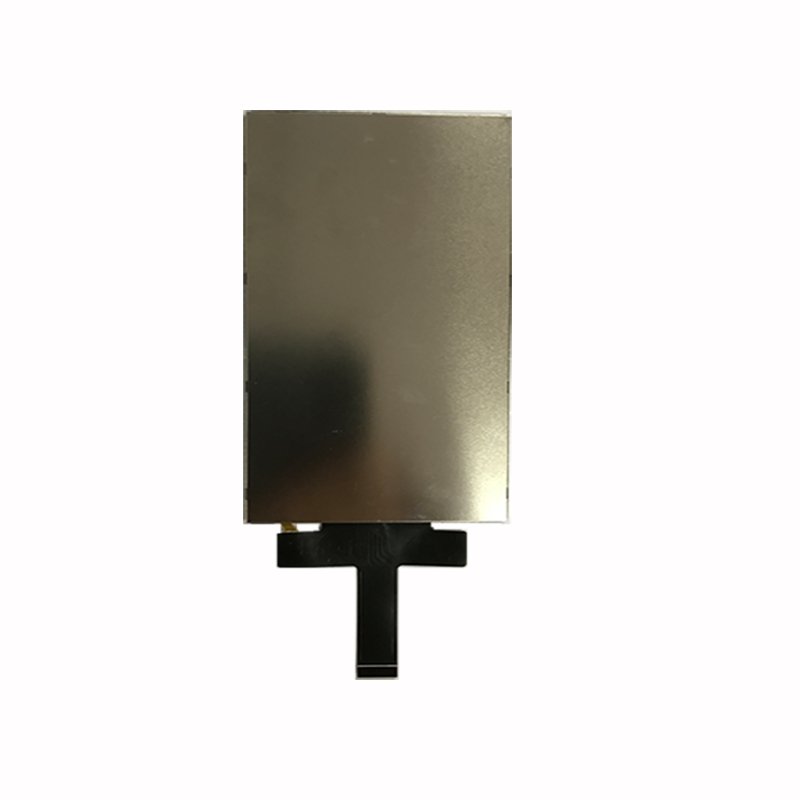

4.3 inch IPS LCD Screen with Resolution 480*800 / MIPI Interface





Basic Specifications:



Display area(AA) 56.16(H)*93.60(V) (4.3inch)

Driver element TFT active matrix

Display colors 65K/262K/16.7M

Number of pixels 480(RGB)*800

TFT Pixel arrangement RGB vertical stripe

Pixel pitch 0.117(H)*0.117(V)

Viewing angle ALL

TFT Controller IC ILI9806E

Display mode Transmissive/Normally Black

Operating temperature -20～+70℃

Storage temperature -30～+80℃

Module Size:62.50*105.55*2.5mm



Mechanical Drawing:

4.3inchips
