  • Size
    2.4 inch
  • Resolution
    240(RGB)X320
  • Active Area
    36.72X48.96mm
  • Outline Size
    29. 24 x 62. 06 x 2.5 mm
  • Brightness
    550cd/m2
  • Interface
    MCU / SPI / RGB
  • Working Temperature
    -20°C-70°C
  • Strorage Temperature
    -30°C-80°C

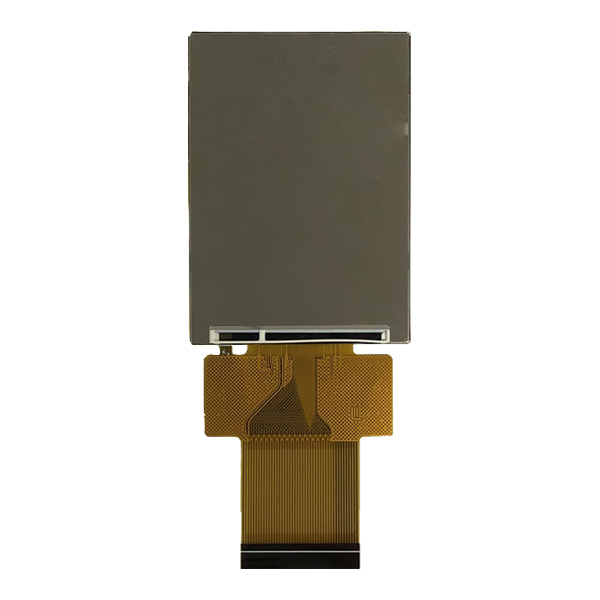

2.4 inch IPS LCD Display with resolution 240 x 320 / MCU / SPI / RGB Interface option



General Specifications:

Display Size:2.4 inch

Active Area:36.72X48.96  mm

Drive element:TFT active matrix

Display colors:16.7M

Resolution:240(RGB)*320

Viewing Angle:Free

Controller IC:ST7789V

LCM Interface:8/9/16/18 Bit MCU  3/4-Line SPI + 8/9/16/18 Bit  RGB  3/4 Line Serial

Dislay Mode:Transmissive / Normally Black

Operationg Temperature:-20-70 ℃

Storage Temperature:-30-80 ℃



Mechanical Drawing:

2.4inchips
