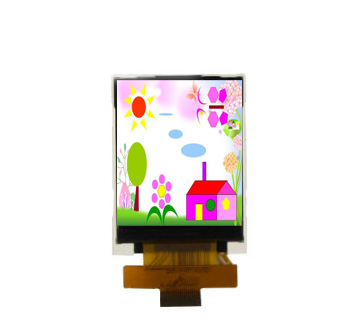

1.77 inch LCD Screen with resolution 128(RGB)*160 / MCU interface

¥ 0.00

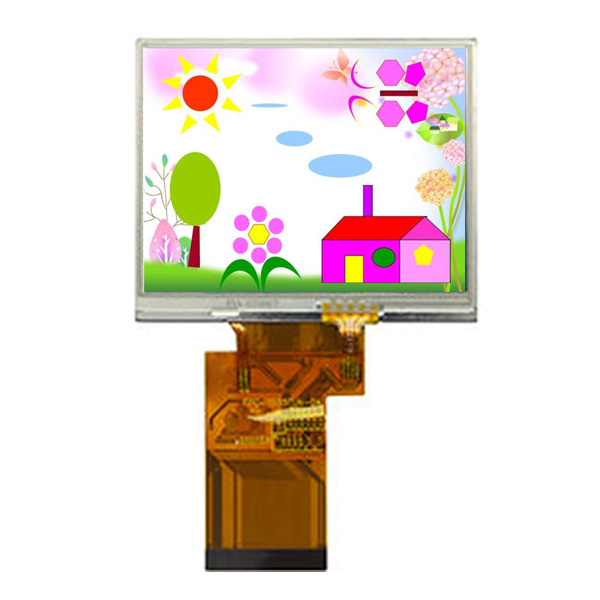

3.5 inch TFT-LCD Screen with Resistive Touch Screen / resolution 320*240 / MCU / RGB interface Option

¥ 0.00

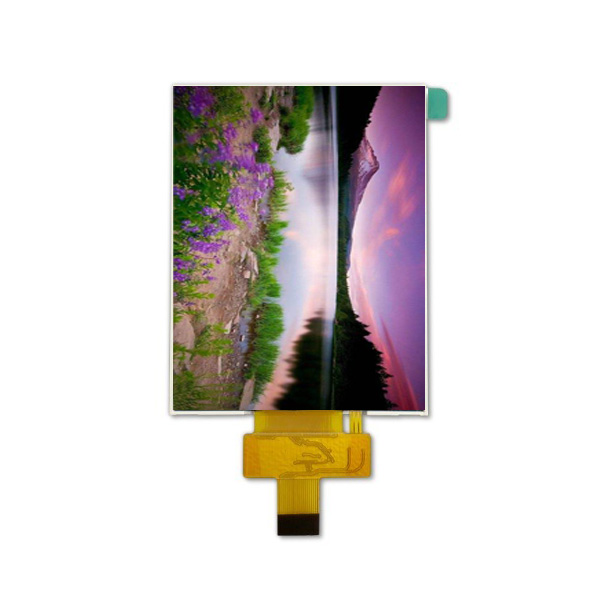

3.5 inch TFT-LCD Display with resolution 320(RGB)*480 / RGB interface / with Capacitive Touch Screen

¥ 0.00

4.3 inch IPS LCD Screen with Resisitive Touch Screen / Resolution 800*480 / RGB Interface

¥ 0.00

4.3 inch IPS LCD Screen with Resolution 480*800 / MIPI Interface

¥ 0.00

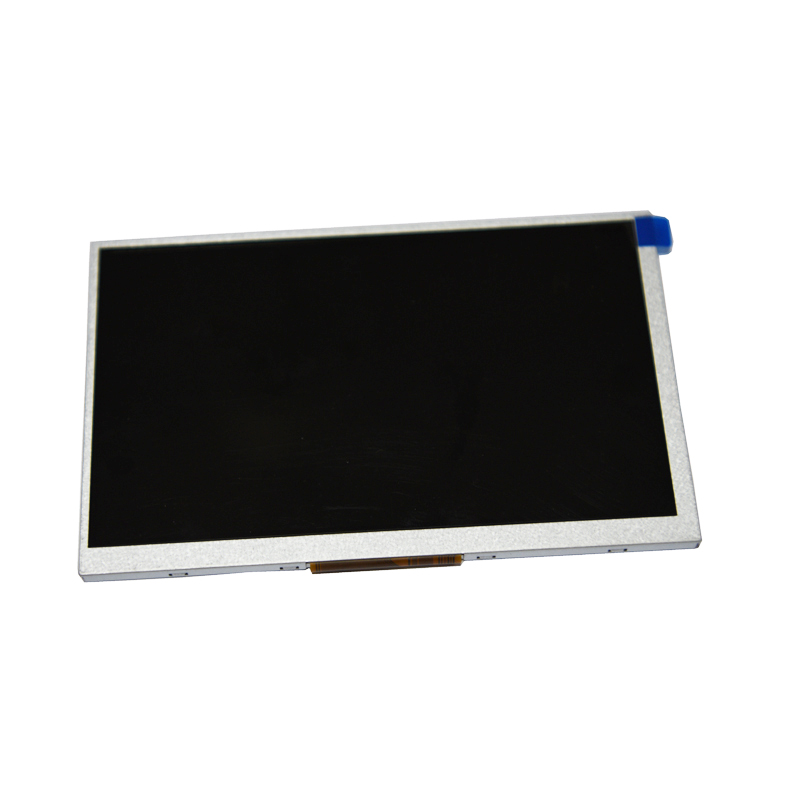

7 inch TFT LCD Screen with resolution 800(RGB)*480 / RGB interface

7 inch TFT LCD Display with resolution RGB interface,800(RGB)*480 resolution

¥ 0.00

넳 넲

Size

5 inch
Resolution

720(RGB)X1280
Active Area

62.10X110.40mm
Outline Size

78.56 x 135.65 x 4.2 mm
Brightness

420cd/m2
Interface

MIPI
Working Temperature

-20°C-70°C
Strorage Temperature

-30°C-80°C

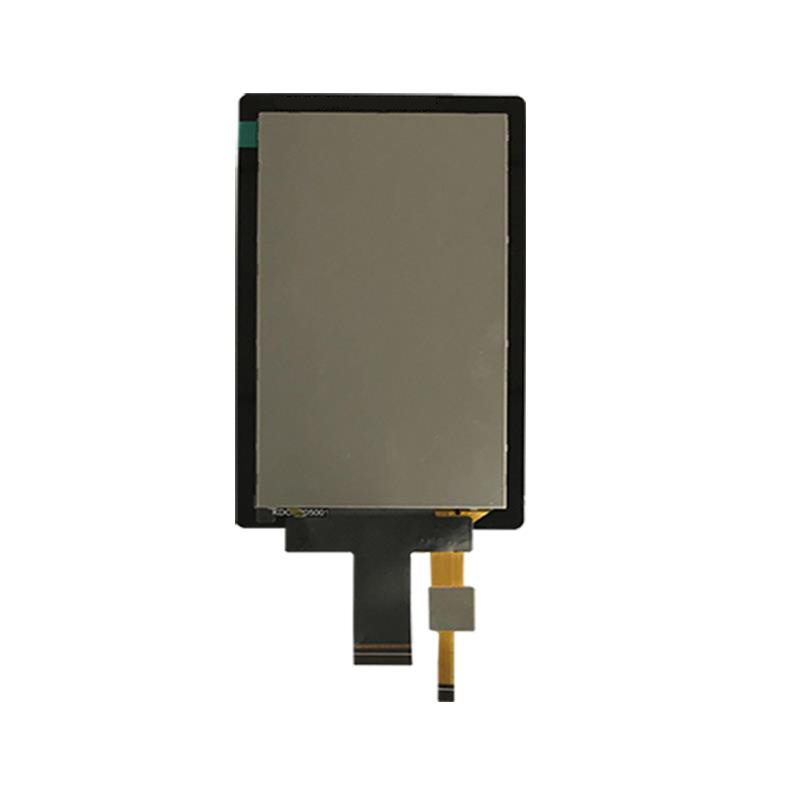

5 inch HD IPS LCD Screen with Capacitive Touch Screen, Resolution 720(RGB)*1280 / MIPI Interface

Description

This is a color active matrix TFT (Thin Film Transistor) LCD (liquid crystal display) that uses amorphous silico
n TFT as a switching device. This model is composed of a Transmissive type TFT-LCD Panel, driver circuit,
back-light unit. The resolution of a 5.0’TFT-LCD contains 720x1280 pixels, and can display up to 65K/262K/1
6.7M colors.

Features

-Low Input Voltage: 3.3V(TYP)
-Display Colors of TFT LCD: 65K/262K/16.7M colors
TFT-Interface: 4 Lane MIPI
CTP-Interface: I2C

General Information

Panel Size:5 inch
Display area(AA) : 62.10(H)*110.40(V) (5.0inch) mm -
Driver element TFT : active matrix
Display colors : 65K/262K/16.7M colors -
Number of pixels : 720(RGB)*1280 dots -
TFT Pixel arrangement : RGB vertical stripe
Pixel pitch : 0.08625(H)*0.08625(V) mm
Viewing angle : ALL o'clock -
TFT Controller IC ILI9881C - -
CTP Driver IC GT911
Display mode Transmissive/Normally Black - -
Touch mode 5-point and Gestures
Operating temperature -20～+70 ℃ -
Storage temperature -30～+80 ℃ -

Mechanical Drawig:

5inchlcdwithctp
