  • Size
    2.8 inch
  • Resolution
    240(RGB)X320
  • Active Area
    43.20X57.60mm
  • Interface
    MCU
  • Working Temperature
    -20°C-70°C
  • Strorage Temperature
    -30°C-80°C
  • Brightness
    600cd/m2

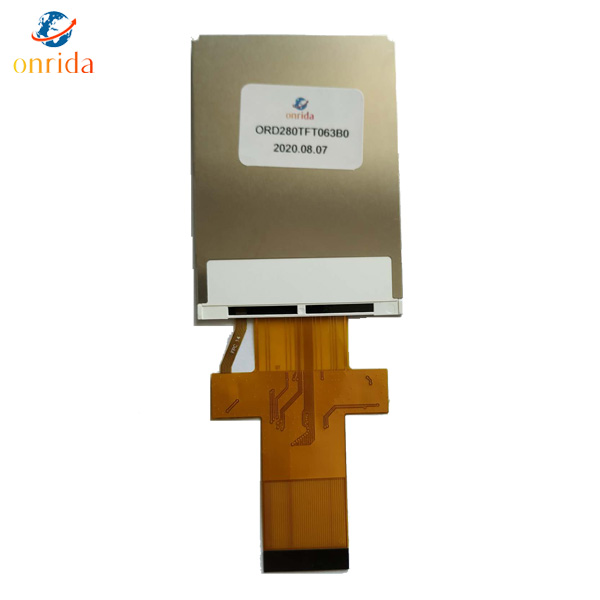

MCU Interface 2.8 inch TFT-LCD Display 240(RGB)X320 Hight brightness 400-800nits option



1.1 Scope of application
This specification applies to the LCD module that is supplied b Shenzhen Onrida Technology CO., LTD.
LCD specification: Dots 240xRGBx320
As to basic specification of the driver IC, refer to the IC (Sitronix:ST7789V)
specification and data book.
All material & processing of the LCD module should be Lead Free.
1.2 TFT features:
Structure: TFT PANNEL+IC +FPC1+BL+FPC2+LENS;
ALL O’CLOCK Type LCD
240 dot-segment and 320 dot-common outputs;
65K Color can be selected by software;
White LED back light;
MCU 16 BIT

2. LCM General specification

LCD Type:Normally black
Drive element :TFT active matrix
Resolution :240*3RGB(H)X320(V)
Pixel arrangement :RGB stripe
Pixel Pitch (W*H) :0.060 (H) x0.180(V) mm
Active area :43.2(H) x 57.6(V) mm
Module Size(W*H*T) :50 x 69.2 x2.11
Viewing direction :ALL O’CLOCK
TFT Driver IC :ST7789V
TFT interface :MCU 16BIT Interface

3.Mechanical Drawing:
