Size3.5 inch
-
Resolution320(RGB) X480
-
Active Area48.96X73.44mm
-
Outline Size61.90 x 96.04 x 3.88 mm
-
InterfaceMCU / SPI / RGB
-
Working Temperature-20°C-70°C
-
Strorage Temperature-30°C-80°C
-
Brightness380cd/m2

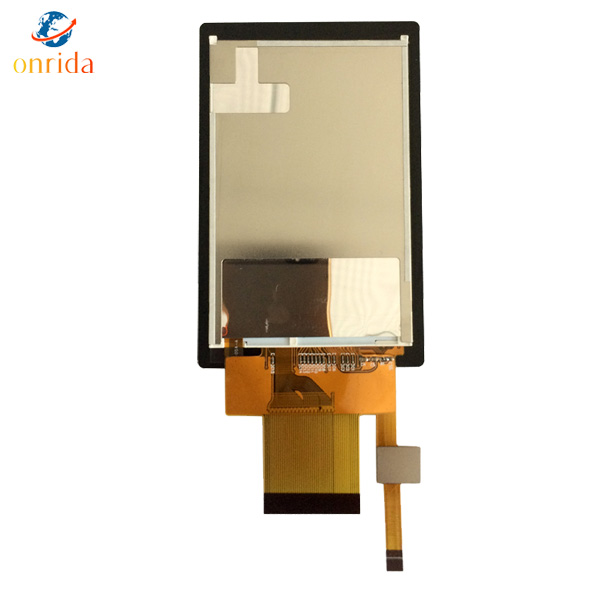

3.5 inch IPS LCD with Capacitive Touch Screen / resolution 320(RGB)x480 / MCU /RGB / SPI interface
* Description
This is a color active matrix TFT (Thin Film Transistor) LCD (liquid crystal display) that uses amorphous silico
n TFT as a switching device. This model is composed of a Transmissive type TFT-LCD Panel, driver circuit,
back-light unit. The resolution of a 3.5’TFT-LCD contains 320x480 pixels, and can display up to 65K/262K
colors.
* Features
-Low Input Voltage: 3.3V(TYP)
-Display Colors of TFT LCD: 65K/262K colors
-TFT Interface: 8/9/16/18Bit MCU Interface
3/4SPI+16/18Bit RGB Interface
3-line/4-line Serial Interface
-CTP Interface: I2C
General Information
Size:3.5inch
Display area(AA) : 48.96(H)*73.44（V)mm -
CTP View area :49.96(H)*74.44(V) mm
Driver element :TFT active matrix - -
Display colors :65K/262K colors -
Number of pixels :320(RGB)*480 dots -
TFT Pixel arrangement :RGB vertical stripe - -
Pixel pitch: 0.153(H)*0.153(V) mm -
Viewing angle :ALL o'clock -
TFT Controller :IC ILI9488 - -
CTP Driver IC :FT6336G
Display mode :Transmissive/Normally Black - -
Touch mode :Single point and Gestures
Operating temperature: -20～+70 ℃ -
Storage temperature :-30～+80 ℃ -
* Mechanical Information
Module size :Horizontal(H) 61.90*Vertical(V) 96.04*Depth(D) 3.88 mm -
* Mechanical Drawing:
