Product Parameter

·

·

  • Size
    5.5 inch
  • Resolution
    1080(RGB)X1920
  • Active Area
    68.30X121.42mm
  • Outline Size
    86.04 x 144.96 x 2.79 mm
  • Interface
    MIPI
  • Working Temperature
    -20°C-70°C
  • Strorage Temperature
    -40°C-85°C
  • Brightness
    350cd/m2

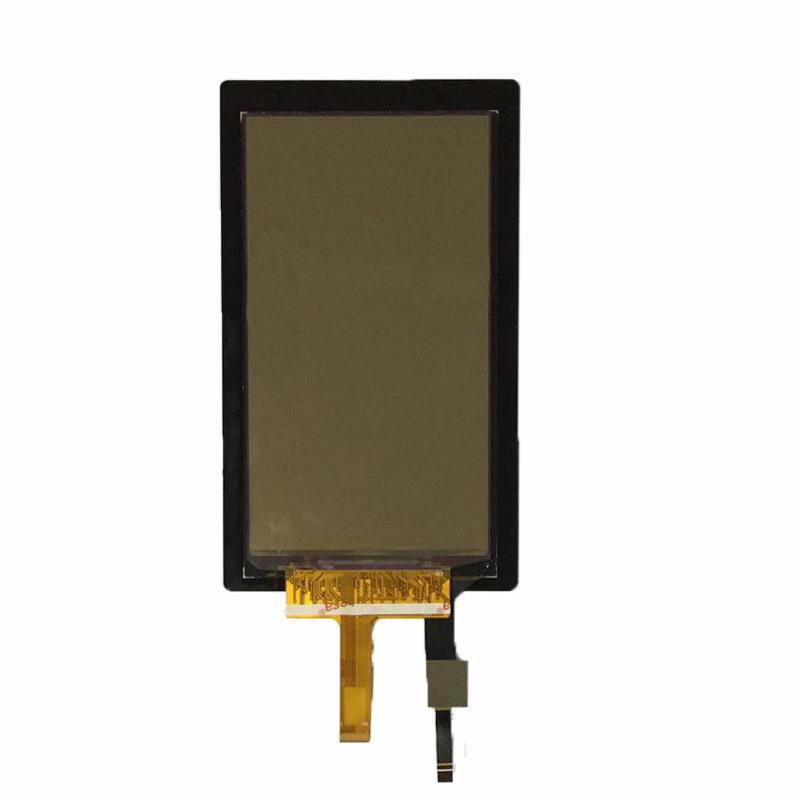

5.5 inch FHD AM Color OLED with Capacitive Touch Screen / Resolution 1920x1080 / MIPI Interface

*1.0 Product introduction
1.1 Product Applications
Display screen of industrial control equipment,mobile phone, portable GPS,
handheld game console…

* 1.2 Product Features
Display area(AA) : 68.30(W) × 121.42(H)mm mm
Display Type : AMOLED 5.5",FHD -
Display colors :16.7M (RGB x 8bits) colors
Number of pixels :1080(RGB)*1920 pixels dots
Pixel pitch : 31.62*63.24 um
Viewing angle : Free viewing angle o'clock
AMOLED Controller IC : RM67191(Raydium) -
LCM Interface : MIPI VIDEO MODE 4 LANE lane
CTP Driver IC : GT911
CTP Interface: I2C
Touch mode :5-points and Gestures
Module Bonding type : Tape bonding
Display mode :Transmissive /Normally Black -
Operating temperature : -20～+70 ℃
Storage temperature :-40～+85 ℃

* 1.3 Product Mechanical Drawing
5.5inchamoledwithctpdrawing
