Size5.5 inch
-
Resolution720(RGB)X1280
-
Active Area10.8X21.6mm
-
Outline Size50.50 x 69.70 x 3.85 mm
-
InterfaceMIPI
-
Working Temperature-20°C-60°C
-
Strorage Temperature-30°C-70°C
-
Brightness250cd/m2

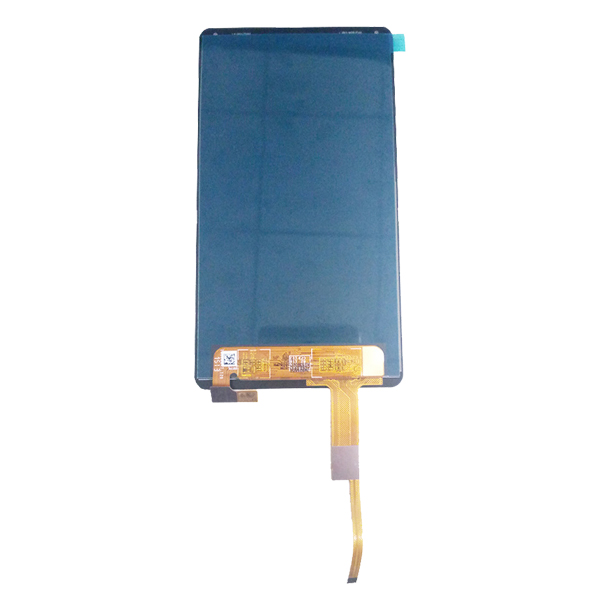

5.5 inch AM OLED with Capacitive Touch Screen option 720x1280 resolution / MIPI interface
1 Scope
This Specification defines AMOLED manufactured by Onrida , from here on refer as
EDO. In the case of any unspecified item, it may require both EDO and the party designs this
module into its product to work out a solution.
2 Features
2.1 Product Applications
Mobile phone, portable GPS, handheld game console…
2.2 Product Features
1) Display color：16.7M (RGB x 8bits)
2) Display format：5.55”HD(720RGBx1280)
3) Pixel arrangement：Real RGB arrangement
4) Interface：MIPI 4 lanes
5) Driver IC：SH1386 (Sino)
3 Mechanical Specifications
Dimension outline : 72.80*131.20*1.176 mm
Dimension outline : 72.80*131.20*1.176 mm
LTPS Glass outline : 72.80*131.20 mm
Encapsulation Glass outline : 72.80*127.80 mm
Number of dots : 720(W) x RGB x 1280(H) dots
Active area : 69.12*122.88 mm
Diagonal size : 5.551 inch
Pixel pitch : 32*96 μm
Glass thickness : 0.5 / 0.5 mm （LTPS/encapsulation glass）
Weight: TBD g
4 Mechanical Drawing:
HOME
ꄲ
OLED Module
ꄲ
Color AM OLED
ꄲ
5.5 inch AM OLED with Capacitive Touch Screen option 720x1280 resolution / MIPI interface
