넳 넲

Size

0.95 inch
Resolution

120(RGB) x 240
Active Area

10.8X21.6mm
Outline Size

12.8 x 27.35 x 0.75 mm
Interface

SPI
Working Temperature

-30°C-70°C
Strorage Temperature

-40°C-80°C
Brightness

300cd/m2

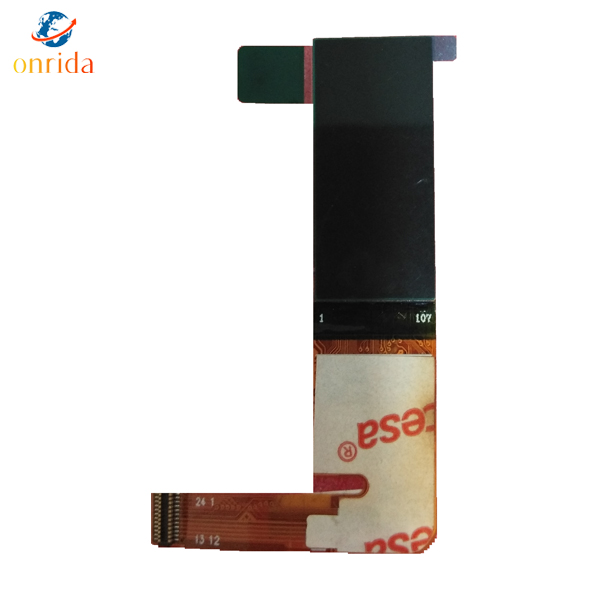

0.95 inch AM OLED with Capacitive Touch Screen / Resolution120(RGB)x240 / SPI interface

1 General Description
Display Color：RGB888
Dot Matrix：120*240
Driver IC：FT2201
Interface：4-SPI
Wide range of operating temperature：-40℃ to 70℃

2 Module Parameter
Features Details Unit
Display Size(Diagonal) 0.95 inch
Display type AMOLED -
Resolution 120RGB x 240 -
View Direction All Best image
Module Outline 12.8(H) ×27.35(V)×0.75(T) (Note 1 ) mm
TP Outline TBD mm
TPViewingArea TBD mm
TPActiveArea TBD mm
ActiveArea 10.8 (H)×21.6(V) mm
Display Colors 16.7M -
Interface 4-SPI -
Driver IC FT2201 -
Operating Temperature -30～70 ºC
Storage Temperature -40～80 ºC
Weight TBD g
Note 1: Excluding hooks, posts , FPC/FPC tail etc.
