Product Parameter

·

·

  • Size
    1.2 inch
  • Resolution
    390(RGB)X390
  • Active Area
    φ30.42
  • Outline Size
    33.22 x 34.72 x 0.68 mm
  • Interface
    MIPI
  • Working Temperature
    -20°C-60°C
  • Strorage Temperature
    -30°C-70°C
  • Brightness
    350cd/m2

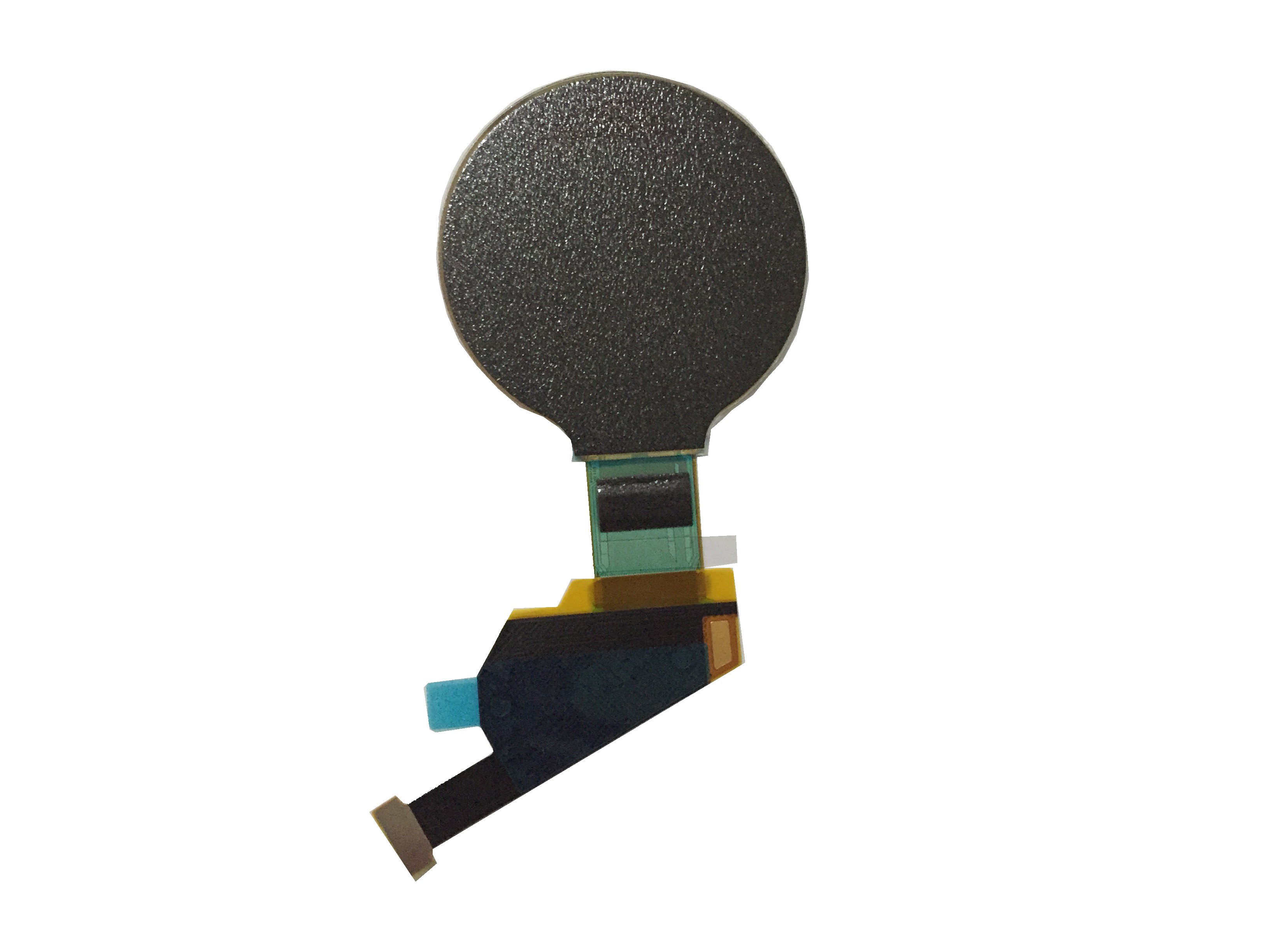

1.2 inch AM OLED Screen with resolution 390(RGB)*390 / MIPI Interface / brightness 350nits

1.Features
2.1 Product Applications
Smart Watch
2.2 Product Features
1) Display color：16.7M (RGB x 8bits)
2) Display format：1.19”(390RGBx390)
3) Pixel arrangement：Real RGB arrangement
4) Interface：MIPI /SPI

2. Mechanical Specifications
Item Specification unit
Dimension outline 33.22 x 34.72 x 0.68 mm
LTPS Glass outline 33.22 x 34.72 mm
Encapsulation Glass outline Φ30.42 mm
Number of dots 390(W) x RGB x 390(H) dots
Active area φ30.42 mm
Diagonal size 1.19 inch
Pixel pitch 78*78 μm
Glass thickness
（LTPS/encapsulation glass）
0.2 / 0.2 mm
Weight TBD g

2. Mechanical Drawing:
1.2inchamoled
