Size5 inch
-
Resolution800(RGB)X480
-
Active Area108x64.08 mm
-
Outline Size121.5x95.1x4.96 mm
-
InterfaceHDMI
-
Working Temperature-20°C-70°C
-
Strorage Temperature-30°C-80°C
-
Brightness500cd/m2

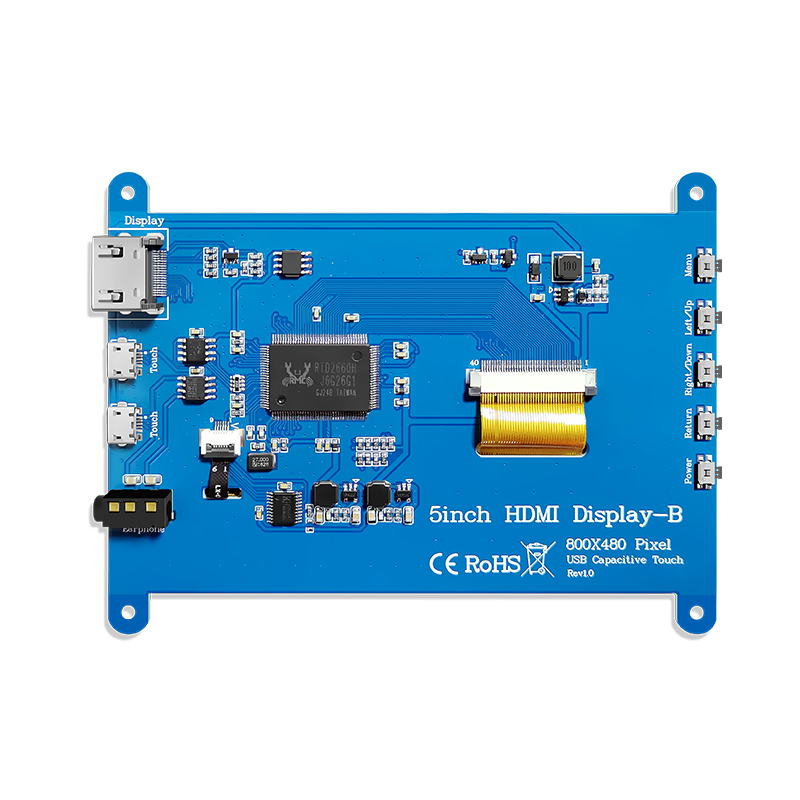

800X480 Resolution 5 inch HDMI IPS LCD with Brightness 500cd/m2
1.Basic Specifications:
| Size | 5 inch |
| Resolution | 800X480 |
| Active Area |
108X64.08mm
|
| Outline Size |
121.5X95.1X4.96mm
|
| Brightness | 500cd/m2 |
| Interface | HDMI/USB |
| Touch Screen | USB Capacitive Touch Screen |
| View Angle | All |
2.Optical Parameters:
3.Mechanical Drawing:
