Size3.5 inch
-
Resolution320(RGB) X480
-
Active Area48.96X73.44mm
-
Brightness300cd/m2
-
Working Temperature-20°C-70°C
-
Strorage Temperature-30°C-80°C
-
InterfaceHDMI
-
Outline Size81.91X93.44X11.6 mm

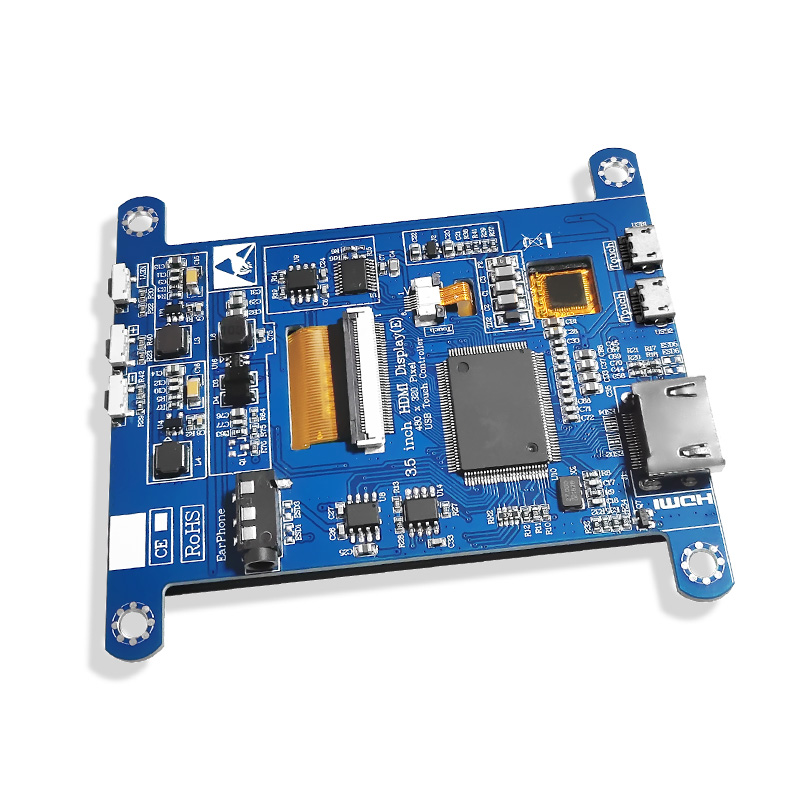

300cd/m2 Brightness 3.5 inch HDMI LCD 320X480 Resolution
1.Basic Specifications:
| Size | 3.5 inch |
| Resolution | 320X480 |
| Interface | HDMI/USB |
| Brightness | 300cd/m2 |
| Touch Screen | USB Capacitive Touch Screen |
| Active Area |
48.96x73.44 mm
|
| Outline Size |
81.91x93.44x11.6mm
|
| View Angle |
12 O'CLOCK
|
2.Optical Parameters:
3.Mechanical Drawing:
