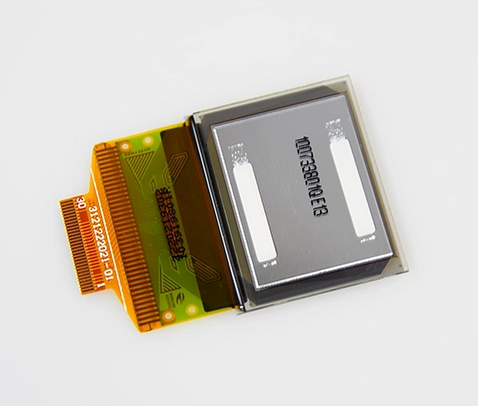

Parallel/SPI/RGB 1.45 PM OLED with Resolution 160*128 Resolution for smart wearable

1. Display Specifications :

1) Display Mode : Passive Matrix
2) Display Color : 262,144 Colors (Maximum)
3) Drive Duty : 1/48 Duty
1.2 Mechanical Specifications
1) Outline Drawing : According to the annexed outline drawing
2) Number of Pixels : 160 (RGB) × 128
3) Module size : 35.80 × 45.30 × 1.60 (mm)
4) Panel Size : 35.80 × 30.80 × 1.60 (mm) including “Glare Polarizer”
5) Active Area : 28.78× 23.024 (mm)
6) Pixel Pitch : 0.06 × 0.18 (mm)
7) Pixel Size : 0.04 × 0.164 (mm)
8) Weight : 3.6 (g) ±10%

2.Optical Characters:

3.Mechanical Drawing:
