Size3.4 inch
-
Resolution800(RGB)X800
-
Active Area87.6X87.6mm
-
Outline Size99.0 x 96.6 x 3.98 mm
-
InterfaceMIPI
-
Working Temperature-20°C-70°C
-
Strorage Temperature-30°C-80°C
-
Brightness350cd/m2

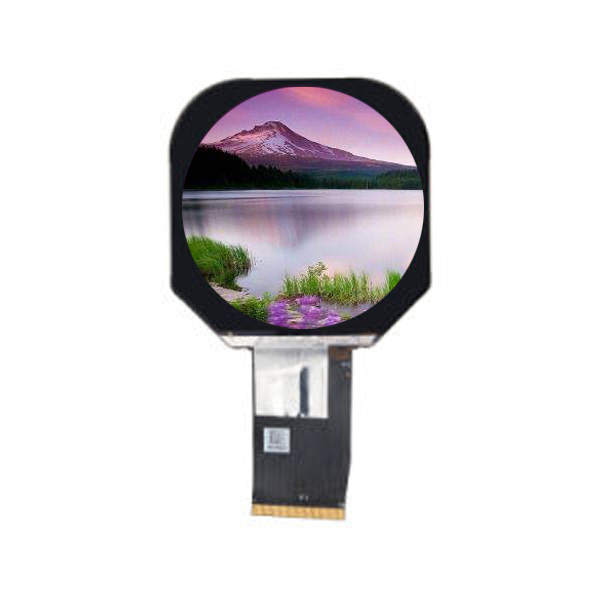

3.4 inch TFT-LCD Round Screen with Resolution 800(RGB)X800 / MIPI Interface / Brightness 350cd/m2
Feature Spec
Size : 3.4 inch
Resolution : 800(RGB) x 800
Technology : Type a-Si
Display Spec.
Pixel pitch(um) :109.5*109.5
Display Mode : SFT
Surface Treatment : HC
Viewing Direction : FREE
Module (W x H x D) (mm) with CTP : 99.0 x 96.6 x 3.98
Active Area(mm) : 87.6*87.6
With /Without TSP : With CTP
Characteristics Mechanical
Matching Connection Type : FPC
LED Numbers : 8 LEDs
CTP Surface hardness ≥7H
Interface : MIPI 3 lane
Characteristics Electrical
Color Depth : 16.7M
LCD Driver IC : ILI9881C
CTP Driver IC : HX8526-E30
CTP Interface : IIC
Mechanical Drawing:
