Support InterfaceDVI / HDMI / VGA
-
Support ResolutonHDMI 480i, 480p, 720p, 1080i, 1080p / DVI 480i, 480p, 720p, 1080i, 1080p
-
Board Size139X58X17mm
-
Support Screensupport screen with LVDS interface
-
Drive ICNT68676(UFG)
-
Thickness of Board1.7 mm
Controller Board with DVI/HDMI/VGA Interface support LED/LCD panels which resolution is up to 2048×1152
1. GENERAL DESCRIPTION
M.NT68676.2A is a monitor control board, which is suitable for Asia-Pacific market. It can support
LED/LCD panels which resolution is up to 2048×1152.
M.NT68676.2A can synchronize with computer automatically. Synchronization requires the
synchronous signal which horizontal and vertical sync are separated.
M.NT68676.2A can support dynamic contrast control, headphone input and Digital volume control
simultaneously.
2. FUNCTION LAYOUT

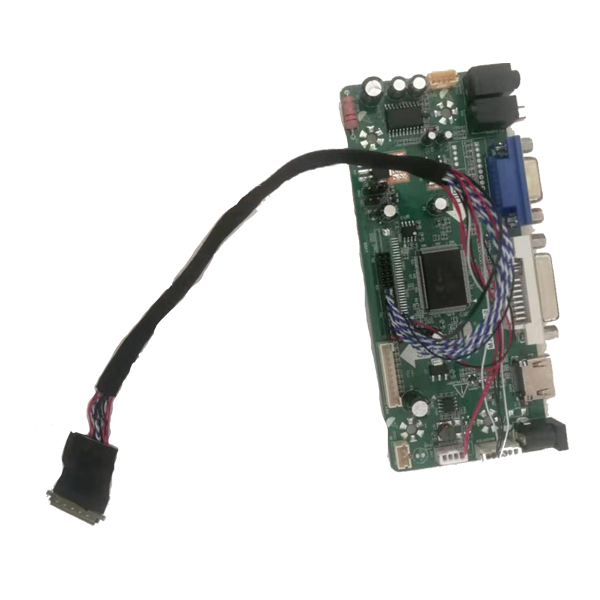

The picture is for a reference only, the actual item is the standard.
The optional connectors and terminals are marked with “*”.
